Ballistic helmets pass the test of GA293-2012, GJB5115-2004, USA standard NIJ0101.01 and STANAG2920. Our helmet is molded of Kevlar fabric under the high temperature and pressure. The surface is painted with poly urea with the waterproof, anti magnetic, ultraviolet ray ageing resistance and anti-chemical attack properties.

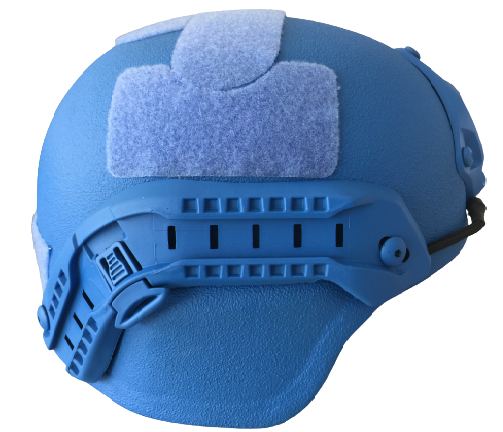

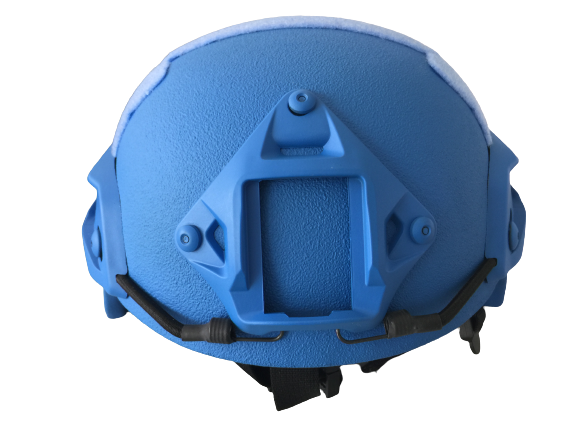

MICH: Modular Integrated Communications Helmet
It become developed through manner of america navy soldier systems center to be the following generation of protective combat helmets to be used by manner of the u.s. army. the advanced combat helmet is derived from the mich.
Functions
Excessive ballistic standard performance with low weight
The usage of immoderate-tenacity ballistic kevlar®/pe fiber
Particular processing approach and ideal fit suspension gadget
Item |
Protection Level |
Material |
Thickness (mm) | Inside / Outside(mm) |
Size | Head Circumference (mm) | Weight(kg) | Protection area(m2) | |||
Long Axis | Minor Axis | Inner Height | With Nails | Without Nails | |||||||
MICH | NIJ0106.01 standard IIIA | KEVLAR® | 6.8 | 229/243 | 216/230 | 156/163 | S | 52-56 | 1.45±0.05 | 1.30±0.05 | 0.102 |
NIJ0106.01 standard IIIA | KEVLAR® | 6.8 | 235/249 | 222/236 | 156/163 | M | 54-57 | 1.48±0.05 | 1.32±0.05 | 0.108 | |
NIJ0106.01 standard IIIA | KEVLAR® | 6.8 | 246/260 | 231/245 | 159/166 | L | 57-59 | 1.55±0.05 | 1.40±0.05 | 0.115 | |
NIJ0106.01 standard IIIA | KEVLAR® | 6.8 | 261/275 | 242/256 | 167/174 | XL | 59-63 | 1.65±0.05 | 1.50±0.05 | 0.125 |

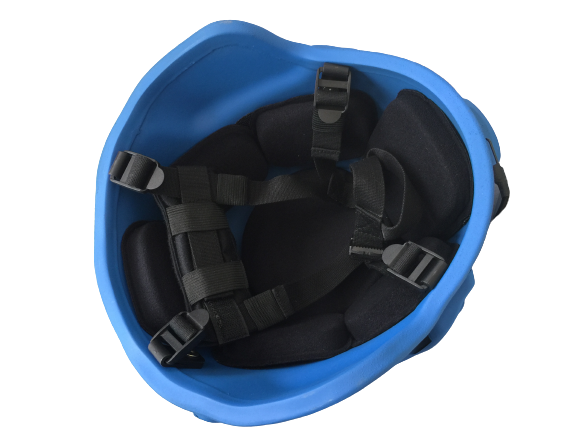

Suspension Systems
3 different Suspension Systems. All have a 4 point chin strap harness, with an integrated nape pad.
Crown Mesh with cross straps; with plastic chin cup.
Leather Ring: shock Absorption harness, with leather webbing and leather split chin strap.
Pad: 7 EVA foam pads; with webbing split chin strap
Size:Average size
Weight: 1.3-1.5kg
